Prop 3D Models

This page helps you browse Mabinogi props by folder. Pick a prop to preview its 3D model.

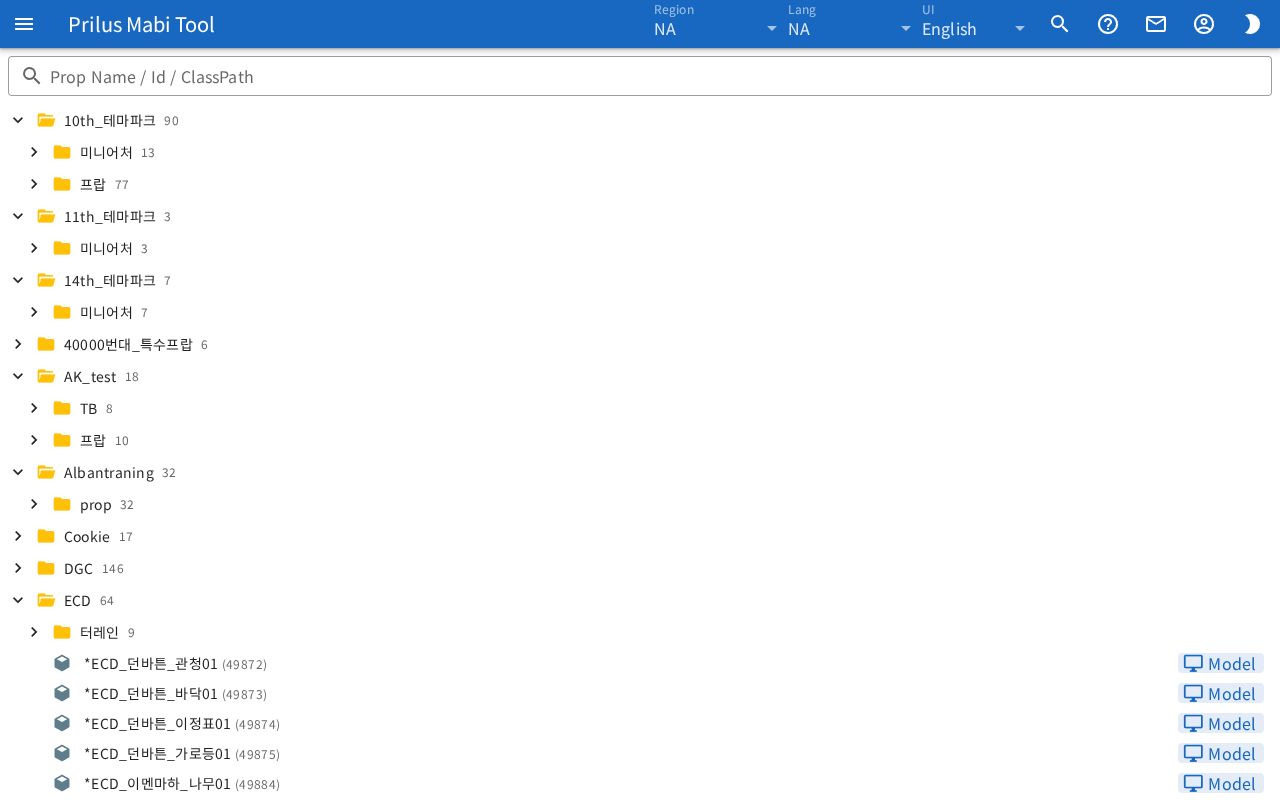

Prop list screen

Screen layout

The Prop Name / Id / ClassPath search box is at the top.
Below it is the folder list. The number next to a folder name is the number of props in that folder.
Inside a folder, props are shown one per row. Each row has the prop name, its ID in parentheses, and the Model button at the far right.

Type a prop name in the Prop Name / Id / ClassPath box.
Only props with a matching name stay, and all folders containing them are expanded.
Press Model in the row of the prop you found to open the 3D model window.

You can search by prop name, ID, or folder path. The folder path is the folder names in the list joined with /.
When you enter search words, all folders are expanded.
If no props match, "Nothing matches." appears.
Clear the box to show all props.

Click a folder row to expand or collapse it.
With the keyboard, move to a folder row with Tab and press Enter or the space bar to expand or collapse it.
At first, only folders that contain other folders are expanded. Folders that contain only props are collapsed.

Click a prop name to open a window with that prop's full details. Click an entry to expand or collapse it.
Press Model to open the "prop model preview (prop name) (ID)" window.

The inside of the window opened with Model is the 3D view. While the model loads, a progress bar moves at the top.

If the model has several states or sizes, State and Size appear at the top left of the 3D view.

State: You can pick more than one. The look of the states you picked is shown.
Size: Pick one. It appears only for models with two or more sizes.

Drag left or right with the left mouse button to rotate the model. Drag up or down to change the angle you look down from.
Drag up or down with the right mouse button to move the viewing height up or down.
Scroll the wheel to zoom in or out.
On a touch screen, dragging with one finger is the same as dragging with the left button. Spread or pinch two fingers to zoom in or out. Move two fingers up or down together to move the viewing height.

There are buttons at the top right of the 3D view. Panels opened with these buttons open on the right. Press × to close them.

Film button: Saves the view as a GIF. While it is being made, a progress indicator spins on the button. Change the size in GIF Capture Size in Render Settings.
Tree button: Opens the Hierarchy panel. It shows the parts that make up the model as a tree list. Press an eye button to hide or show that part. Press the arrow in front to expand or collapse the entries below it.
Eyedropper button: Opens the Color Modify panel. It appears only when the model has colors that can be changed. Click a color box and pick a color to apply it to the model right away.
Three-line button: Opens the Render Settings panel.

You can also type slider values as numbers in the box to the right. Render settings are saved in this browser.

FPS, Field of View
Light Pitch, Light Yaw, Light Intensity
Enable Animation
Use Post Process, Bloom, FXAA, Bloom Strength, Bloom Radius, Bloom Threshold
Background Color: Pick from the list or enter a color value. Press × to return to the original color.
Sky: When on, Sky Preset, Time of Day, Animate Time, and Clouds appear.
Map: When on, you can choose a Region and Section. While the map loads, Loading map... appears. Press Back to start point to return to the spot where you first stood on the map.
Shadows
GIF Capture Size: The size used when saving as a GIF.
Focus Head, Focus Body: Fits the camera to the head or the whole body.
Reset: Returns the render settings to their defaults.
